WTS-DCT(D) Optical Borehole TV Tester
An HD digital camera probe is used for the WTS-DCT (D) Borehole TV Tester to carefully observe the interior of the core hole or the inner wall of the prestressed pipe pile in real-time. It is used to record and increase the image within the effective image range of the probe and save the pictures of the probe in video mode.
BIT measures the verticality of a borehole and existing piles. It uses the auger/bucket itself as the centralizer and eliminates the need for a heavy-to-move system.
The BIT ensures a fast and accurate determination of inclination in both dry and wet boreholes.
Large boreholes and diaphragm walls may be quickly tested several times during drilling to enable real-time corrective action.

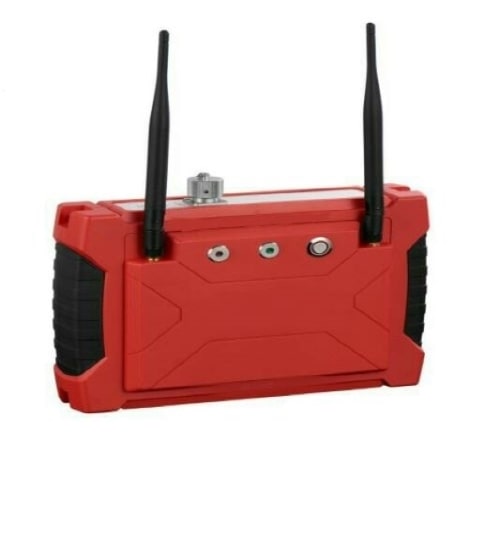

The BIT Main unit is a rechargeable battery operated with wireless communication channels to the depth meter, the mobile computer, and the rig operator box. Rugged polyurethane cable connects the main unit to the inclination sensor.
Precision bi-axial inclination sensor, harsh environment, and pressure-proof to 300m, attached to the drill/bucket using a simple disposable metal plate.

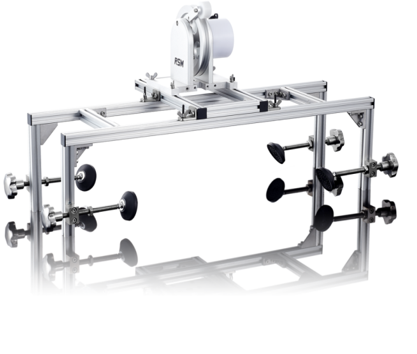

Precision wireless depth meter, transmitting accurate depth to the main box.
Any Android mobile device with Bluetooth communication.
Rig operator satellite box with two LEDs.
Low-cost compared to traditional caliper systems.
Quick to test.
User-friendly wizard-driven software. No training is needed.
Works on any diameter.
Function:
Configuration:

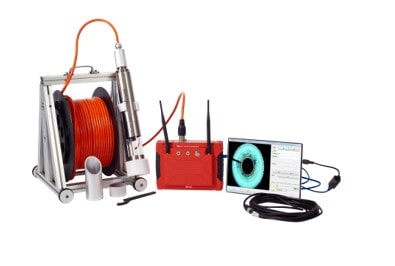

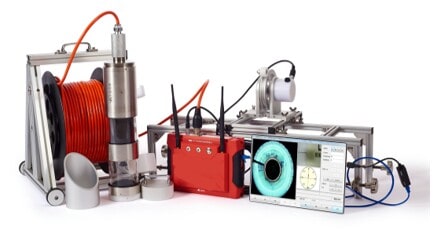

Full Set of 98-type Optical Borehole TV Tester
Full Set of 60-type Borehole TV Tester
Application:
- Verify the core of the pile foundation; observe the position and extent of various defects in the concrete, such as voids, cracks and segregation.
- Observe various anomalies and defects of the prestressed pipe piles; check the status of joints; quantitatively analyze the quality of the pile body, such as fracture area and location, length, width and direction of the fracture and crack.
- Observe various features and subtle structures of boreholes’ geological body, such as stratigraphic lithology, rock structures, faults, fissures, interlayers and karst and catalogue geological histograms.
- Observe the contents of underground pipelines; quantitatively analyze the quality of pipeline, such as fracture area and location, length, width and direction of the fracture and crack.
Software Analysis:

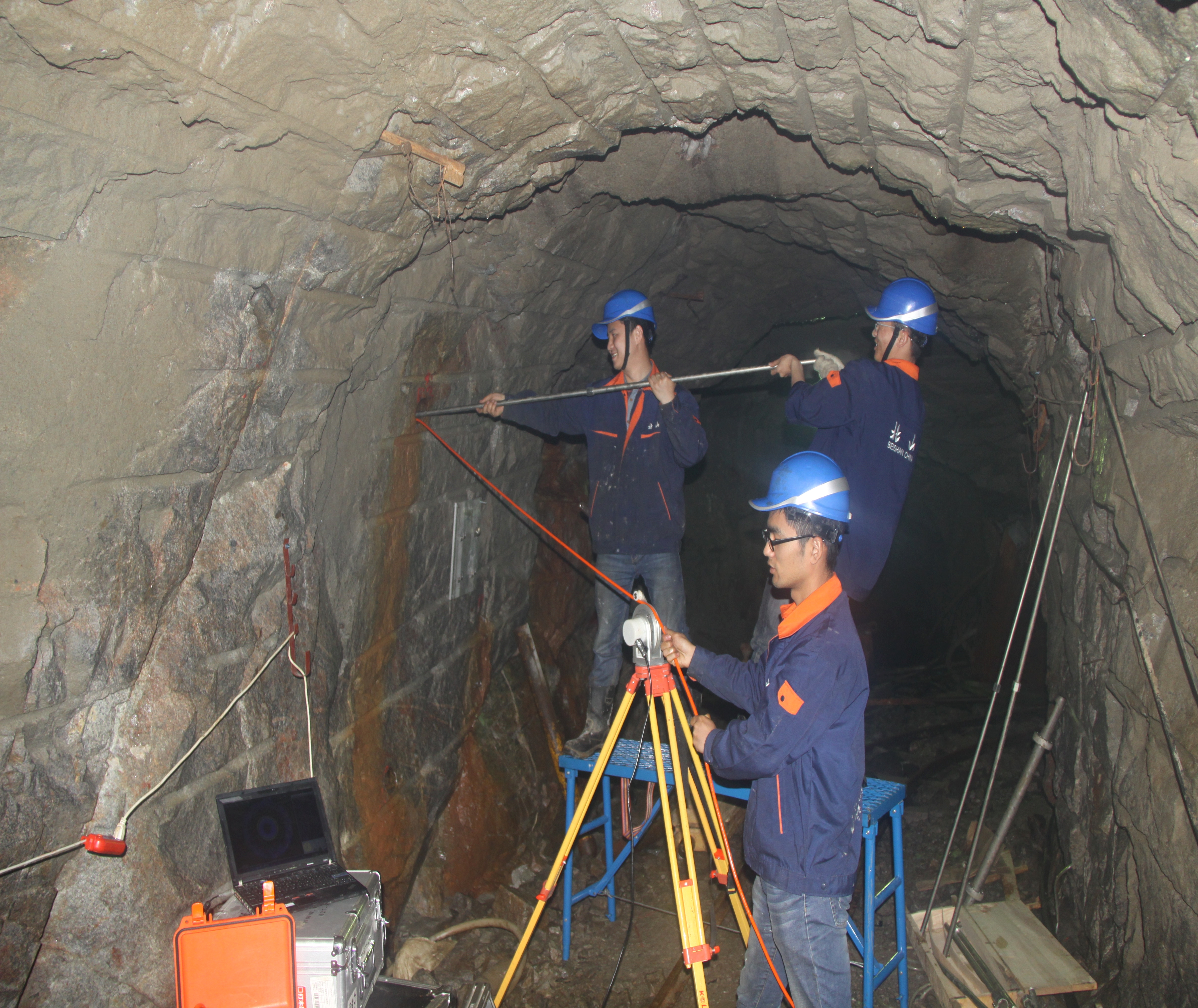

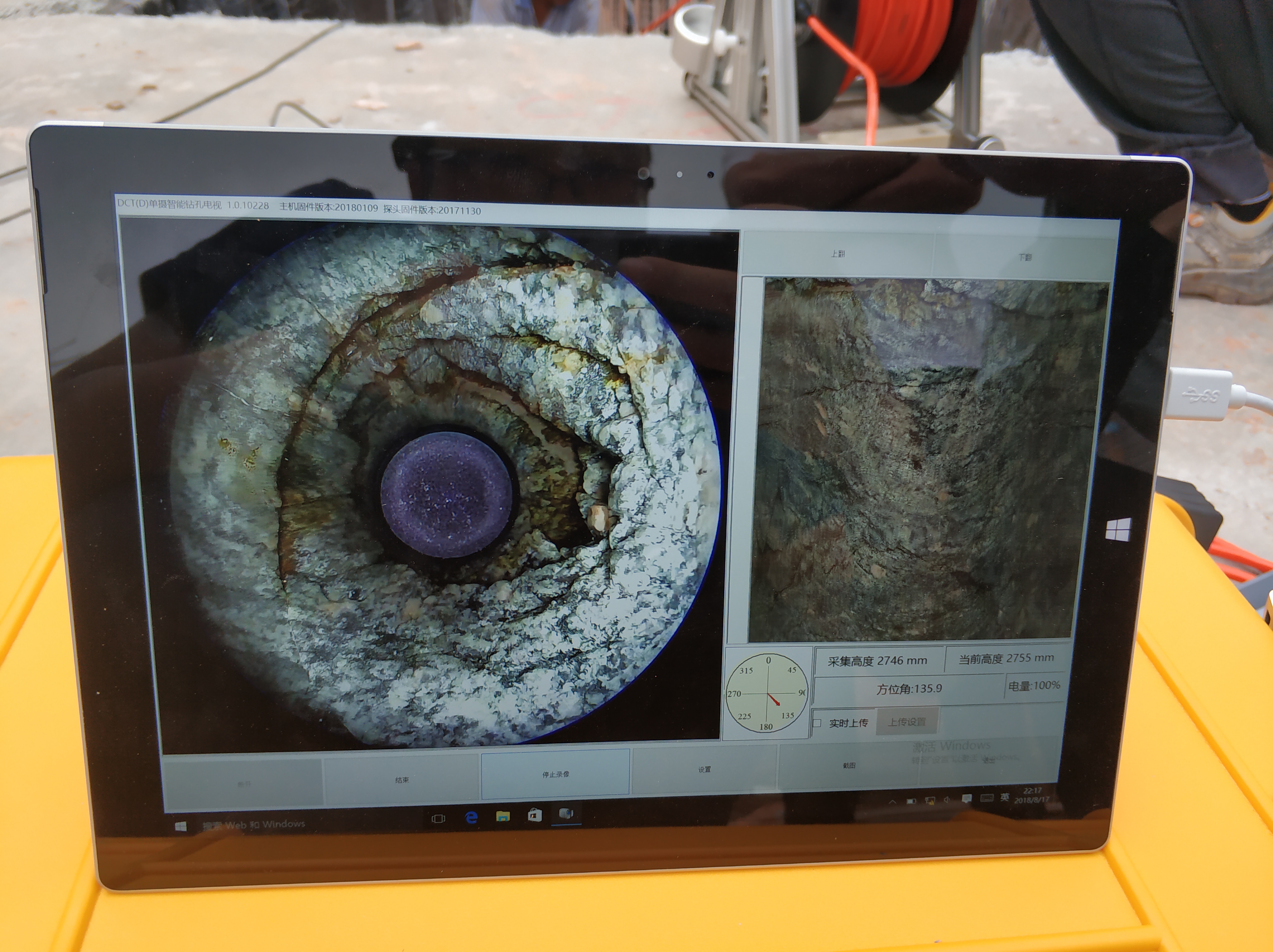

Optical Bore Hole Imaging Survey

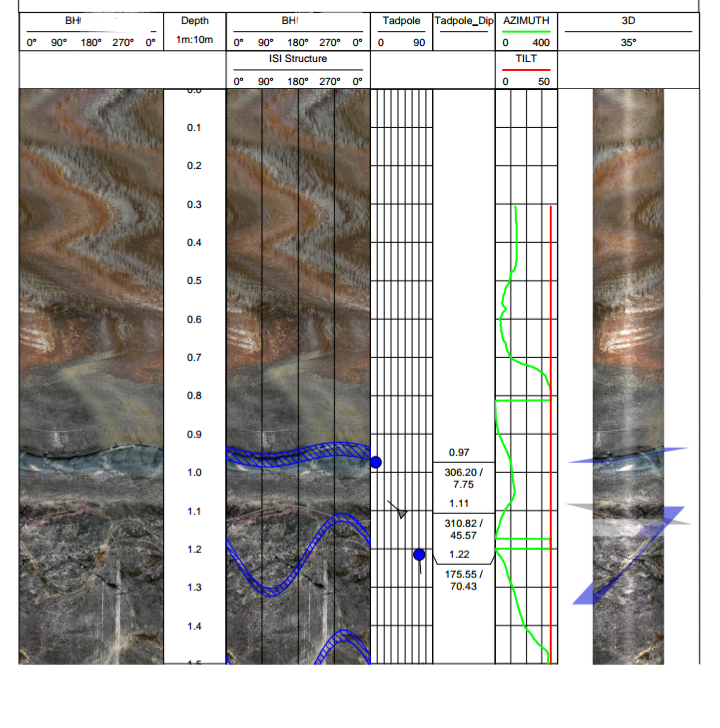

Structural Analysis Plot of Bore Hole Image
Video Image of linear features such as tensile fractures and breakouts
Features:
- On-site collection shall be done while preserving. Image mosaicking is completed after the collection is completed.
- The mode of 'see as you get' is adopted for image and result display, and the display is completely consistent with the print result.
- It can display the plane expansion diagram and the stereoscopic histogram. The stereoscopic histogram can rotate 360 degrees continuously.

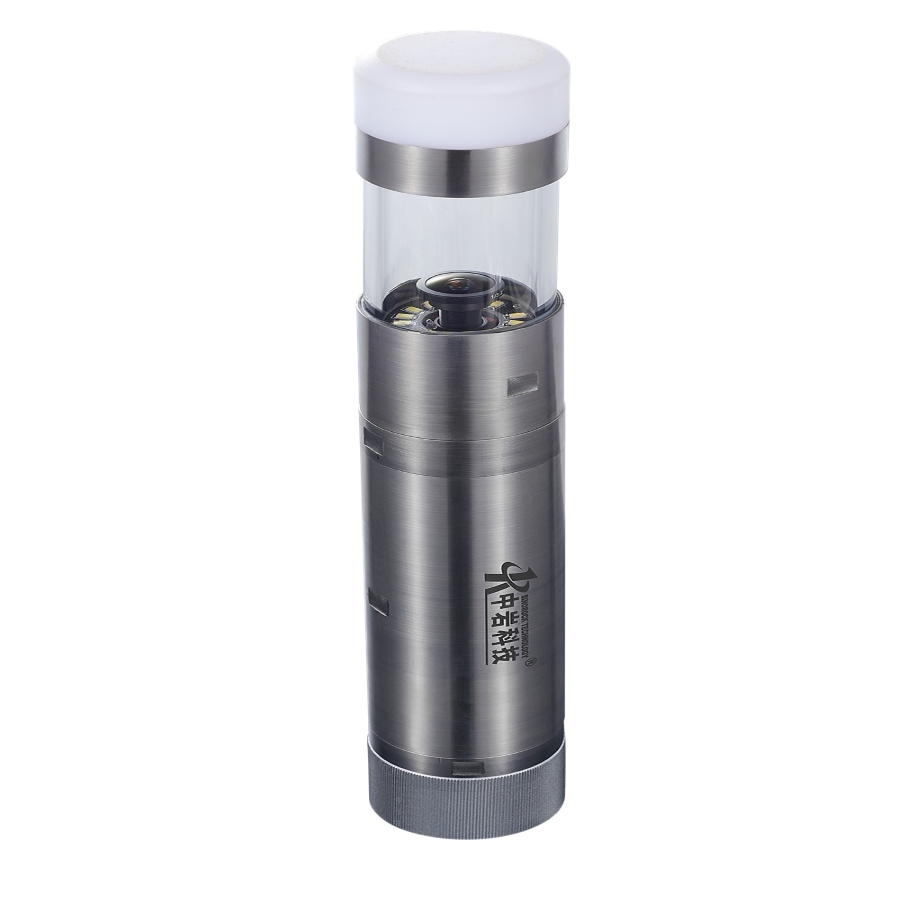

- The shell of the probe is made of stainless steel and the cover is made of toughened optical glass.
- Dual camera mode, variable side focal length, real-time and clear observation of hole wall signal output picture and video
- Digital HD camera is adopted, and the imaging resolution can reach 1080p
- The host is controlled wirelessly, and the wireless control distance can be up to 30m
- Equipped with detachable battery, effectively ensuring on-site test time.
Specifications:
| Master mode | Tablet wireless control |
| Control system | Windows 7 and above |
| Camera pixel | 200W |
| Image Resolution | 1920*1080 |
| Video frame rate | 25 frames per second |
| Operating Voltage | 7.4V±10% |
| Adaptive aperture | Φ60mm to Φ400mm |
| Azimuth correction | Yes |
| Power supply | lithium battery |
| Battery life | ≥10 hours |
| Host size | 250X180X70 mm |
| Host weight | 1.8kg |
| Probe outer diameter | 60mm、98mm |
| Probe pressure | 3MPa |
| Maximum lifting speed | 10m/min |
| Maximum test hole depth | 300m |
Accessories:
Probe

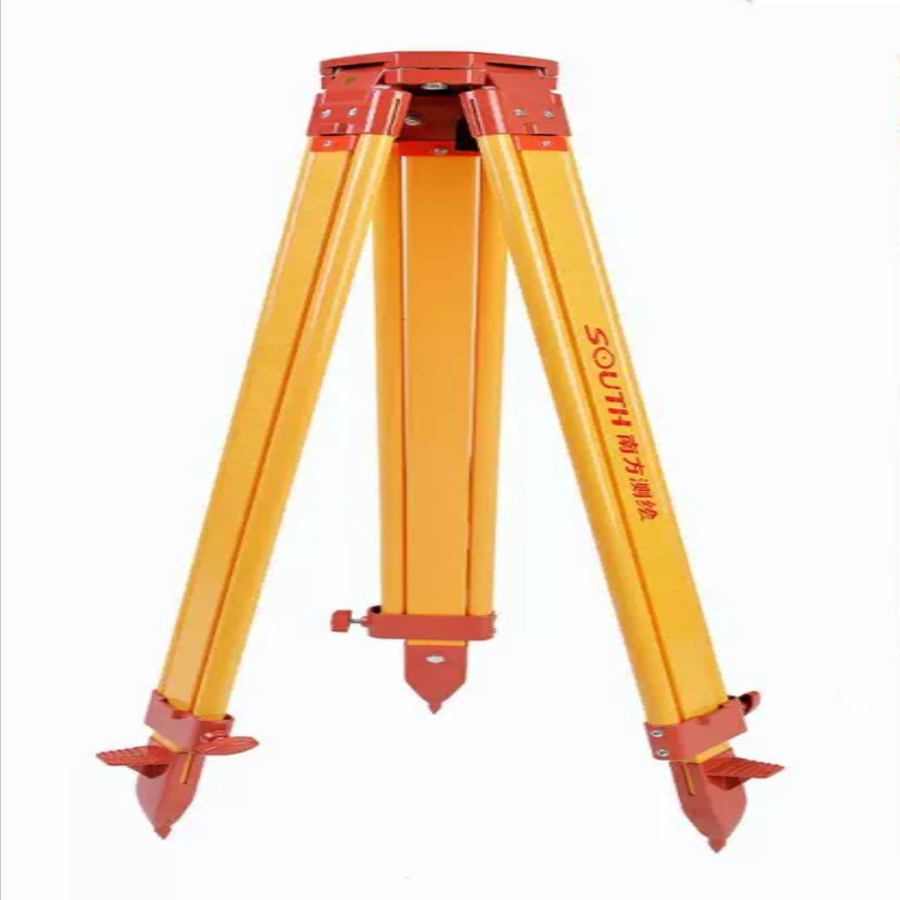

Tripod
Depth Counter
